EAM-R 450/750

Cross-flow heat recovery machine for Ufad systems composed of:

  • Structure in aluminum profiles and sandwich panels made of double galvanized steel paneling and pre-painted with inside polyurethane foam with density of 40 Kg / mc;
  • High efficiency cross-flow recuperator, over 80%;
  • By-pass for free-cooling and free-heating;
  • Section with pleated filters G3 / 4 and / or F7
  • 2 fans without screw with backward curved blades with high efficiency and low noise with available head higher than 250 Pa;
  • Standard control electric panel with On / Off E / I and fan speed management.

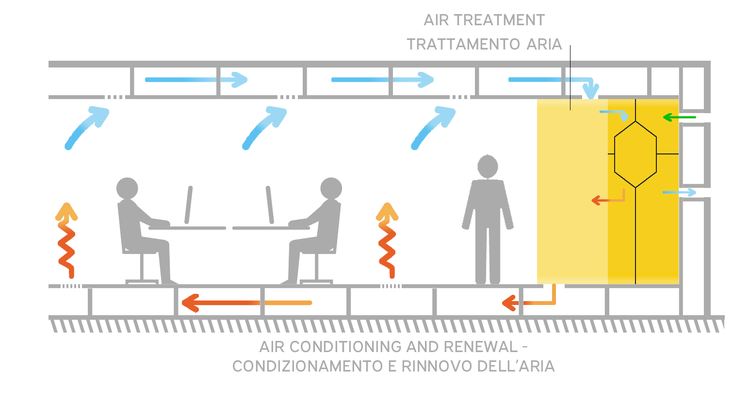

Schematic representation of an Ufad system with heat recovery unit for air renew
