ufad possible design scenarius

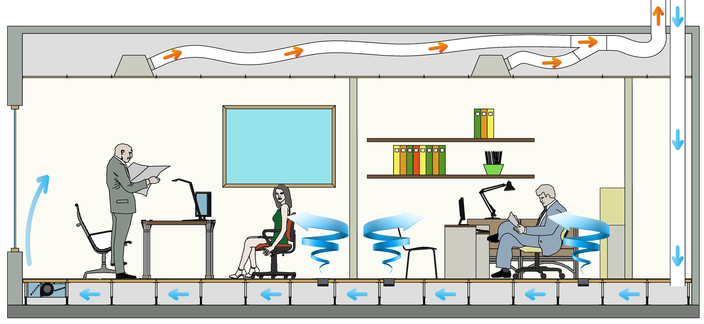

ufad typical layout
The Air Handling Unit also provides primary air for all the building.
The ducts arrive at the under-floor plenums of the various flats.
The air inlet temperatures are around 18-20 ° C for conditioning.
In the picture a duct has been inserted in the false ceiling but that is not always necessary.
ufad Layout using EAM and ONE units
The Air Handling Unit also provides primary air for all the building.
The EAM unit provides air quality regulation in the area.
The air inlet temperatures are around 18-20 ° C for conditioning.
The ONE units with heat exchange coil regulates the temperature in the peripheral areas.

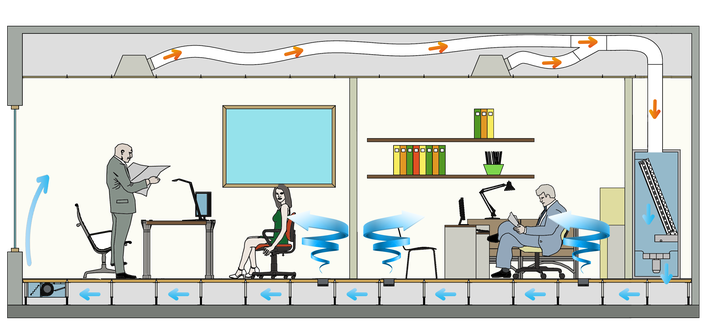

ufad Layout only recirculation zone
Air renewals are autonomous.
The EAM Machine regulates the air quality in the area.
The air inlet temperatures are around 18-20 ° C for conditioning.
The ONE unit with heat exchange coil regulates the temperature in the peripheral areas.
The duct in the space of false-ceiling is not always necessary.
